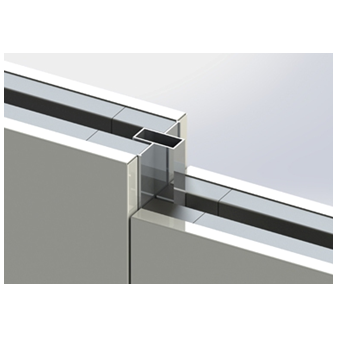

The modular clean room wall panel system is made of aluminium strip profile, used to join two panels together, it has different facial options with factory prefabricated, which is very convenient and fast to install at site.

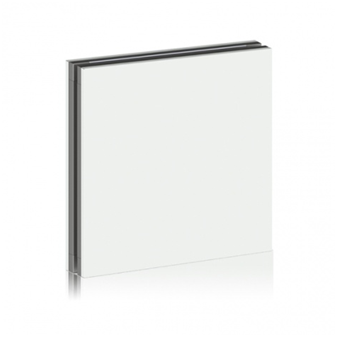

MODULAR CLEAN ROOM WALL PANELS
Technical Specifications:
| Wall Thickness | 30mm, 50mm, 80mm, 100mm, 120mm |
| Facial Option | PPGI, SS Steel |
| Max Width | 1200mm |
| Max Length | 6000mm |
| Steel Facer thickness | 0.4-0.8mm |
| Core Material | PU (Polyurethane Rigid Foam) |
| Frame thickness | 0.4-0.8mm |
| Density | 40±2 Kg/m³ |
MODULAR CLEAN ROOM WALL PANELS
Advantages
- The Clean Room Modular wall panels are used with Aluminium profiles, modular installation is fast and convenient.
- Customised different size at factory.
- Core material used can be multi application for different environment such as fire protection, noise reduction, moisture resistance, withstand different temperature conditions.
- Modular Clean room Panels have good strength, flatness, smooth finish, in overall the product is more stable.

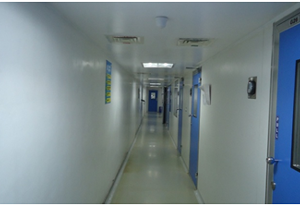

Application
- Pharmaceutical Clean Room
- Electronics Clean Room
- Food Manufacturing Clean Room
- Any Clean Room Environment.
