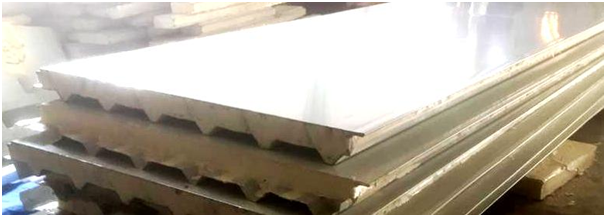

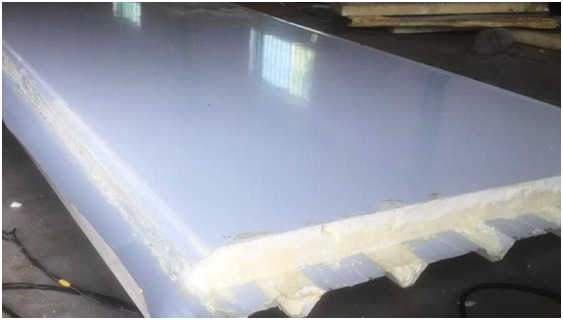

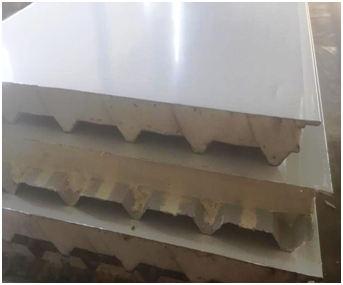

PUF INSULATED SANDWICH ROOFING PANELS

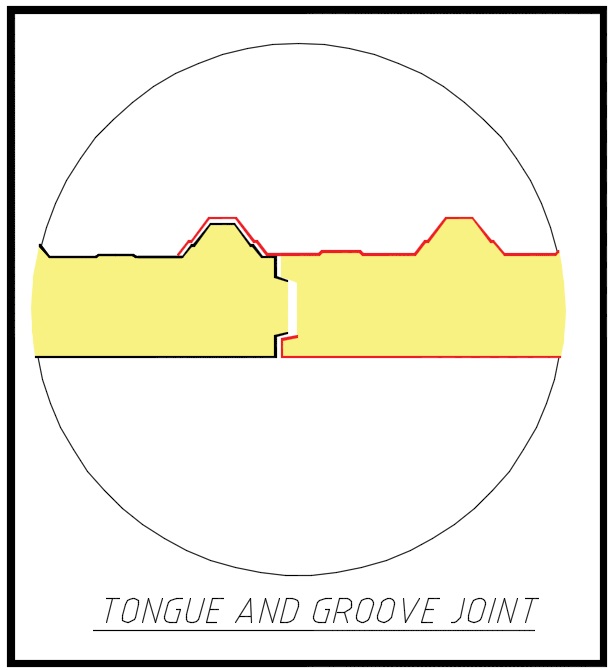

The PUF insulated sandwich Roofing panel is made of Tongue and Groove joining system, which is used to join two panels together also with additional overlapping sheet which is used to cover the joining part to avoid any leakages of water.

about


Advantages

  • PUF insulated sandwich panels are used based on tongue and groove joining system, which is fast and easy to install.
  • Customised different size at factory.
  • Core material used can be multi application for different environment such as fire protection, noise reduction, moisture resistance, withstand different temperature conditions.
  • PUF Sandwich Panels have good strength, flatness, smooth finish, in overall the product is more stable.
  • Available in different colors.
  • Available is various thicknesses of facial materials also the panel thickness, which can improve the product life and quality.
about

Technical Specifications:

Product Description
Wall Thickness 50mm, 80mm, 100mm, 120mm
Facial Option PPGI, PPGL
Max Width 960mm
Max Length 6000mm
Steel Facer thickness 0.4 – 0.5mm
Core Material PU (Polyurethane Rigid Foam)
Density 40±2 Kg/m³


Application

  • Ware House Roofing
  • Cold storage Roofing
  • Factory Shed Roofing
  • Housing Roofing
  • All kind of roofing purpose to with stand temperature condition.
